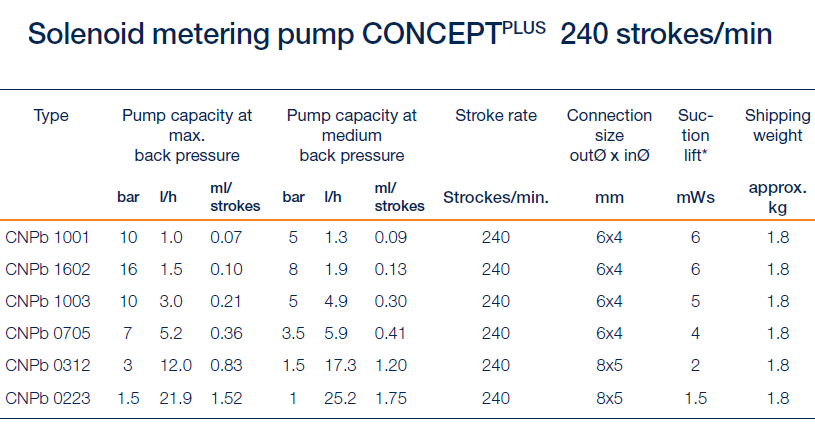

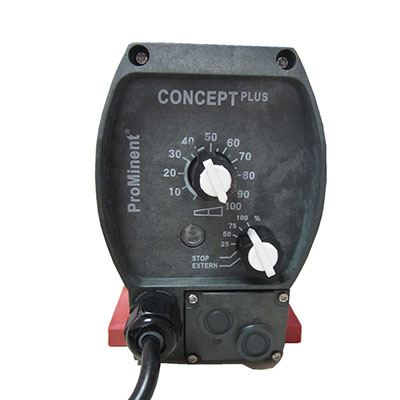

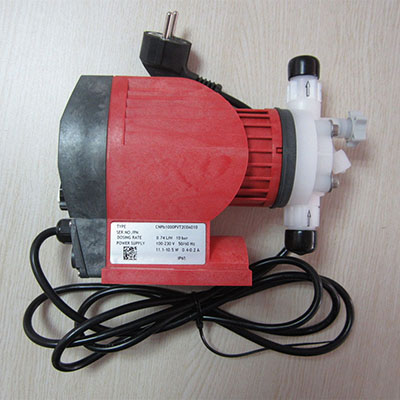

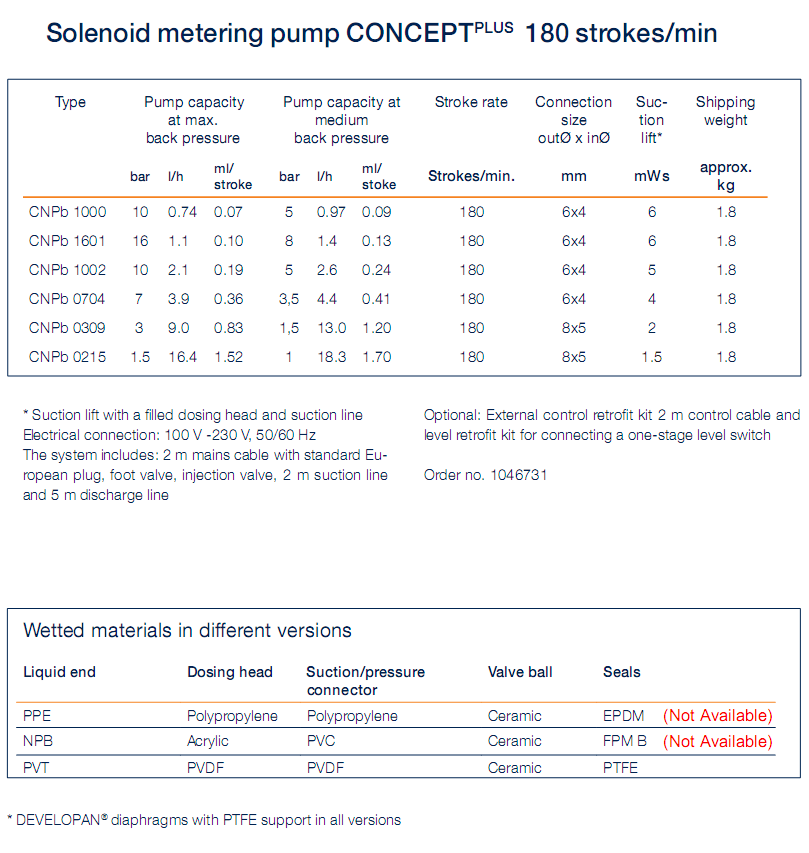

The product range CONCEPT PLUS covers the performance range from 0.74 l/h-10 bar to 21.9 l/h-1.5 bar. With its compact structure it is equally suitable for both conventional installation on a bracket or chemical tank and installation in machines such as slide grinding systems, car wash systems and dish-washers. The metered quantity can be steplessly adjusted by means of the stroke length over a range of 10%-100 % and in four levels by means of the stroke rate. This results in an adjustment range of 1:40. As well as manual stroke rate adjustment the pump can be controlled by potential-free contacts from a water meter or controller. The pump can also be activated and deactivated with a potential-free contact.

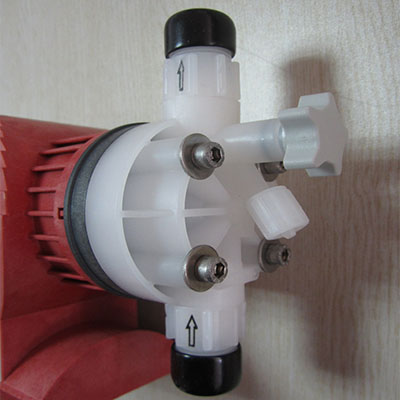

The necessary retrofitting can be carried out at the customer's premises with a specially designed external control retrofit kit. This reduces storage costs without limiting flexibility. A level retrofit kit is available for connecting a level switch. The dosing heads are available in the material combinations PVT2 with bleed valve to cover virtually all metering tasks in water treatment.

CONCEPT PLUS offers uncompromising quality and reliability at an extremely affordable price.
