Casting Capability
Jofa foundries are equipped with cutting-edge equipments to ensure we can meet demanding requirements from our clients. Production lines are available to ensure repeatability, accuracy and efficiency.
Our casting weight ranges from several grams up to 20 tons, casting processes are sand casting, lost wax casting (investment casting), die casting.
| Material | Grade |
|---|---|
| Grey Iron | ASTM A48 Cl.20,25,30,35,40,GG20,25,30,35;HT150,200,250,300,350;FC150,200,250,300,350. |
| Ductile Iron | ASTM A536 60-40-18,60-42-10,70-50-05,80-60-03,100-70-03;GGG40-70;FCD400-700; |
| Carbon Steel | WCB, WCC,LCC, LCB, 1020, 1025,1040, 1.0619; SC410,450,480. |
| Alloy Steel | 8620,8630,4140,4130,4320; 42CrMo4,30CrNiMo,etc. |
| Stainless Steel | ASTM CF8, CF8M, CF3, CF3M, CA-15, CA-40, etc.; |
| High Manganese Steel | ASTM A128 Gr. A, B,C,D,E;Mn13, Mn18, Mn22, Mn13Cr2, Mn18Cr2, Mn22Cr2,etc. |
| High Chrome Cast Iron | KmTBCr12,KmTBCr15Mo,KmTBCr20Mo,KmTBCr26,etc. |

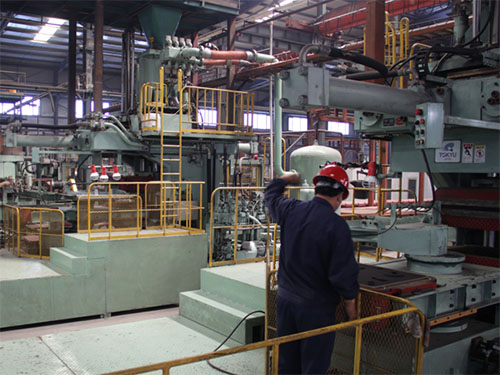

Molding Line

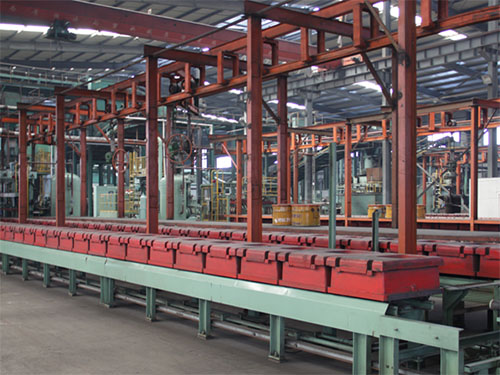

Production Line

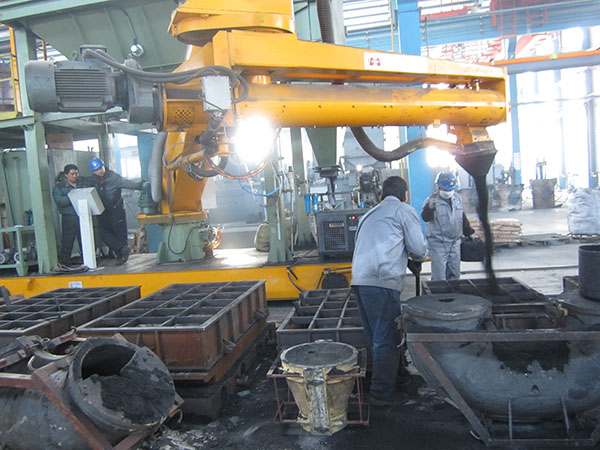

Sand Mixer

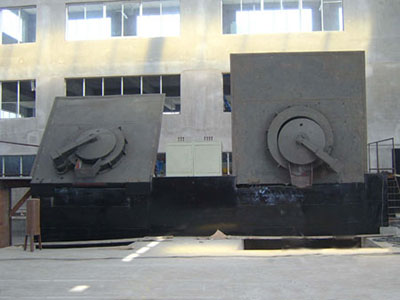

Electric Furnace

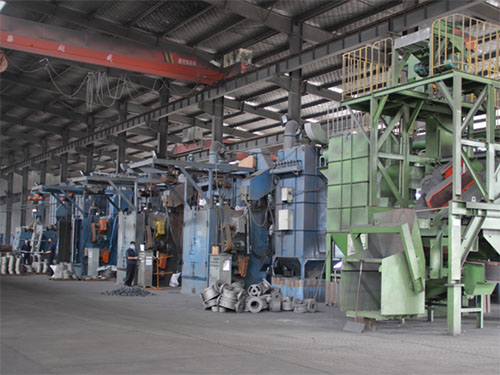

Shot Blasting Machine

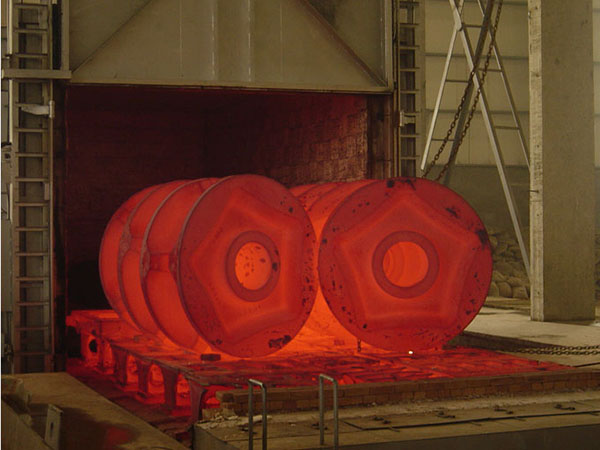

Heat Treatment Furnace

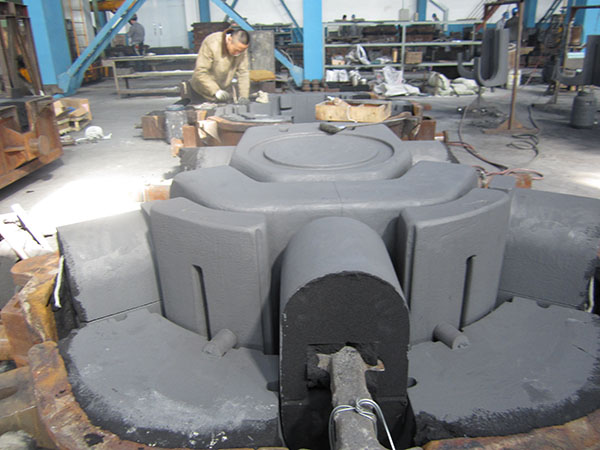

Mold Assembling

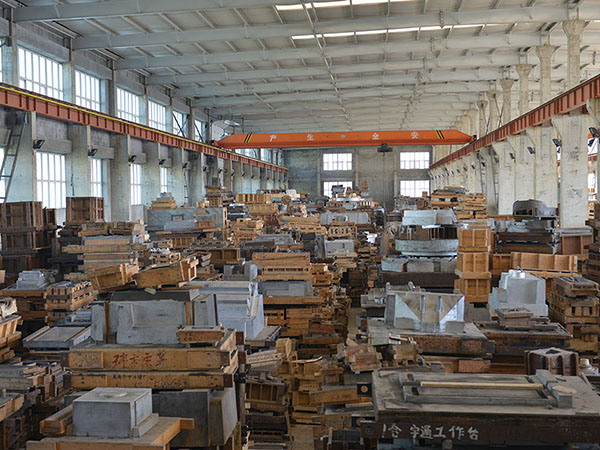

Pattern Shop

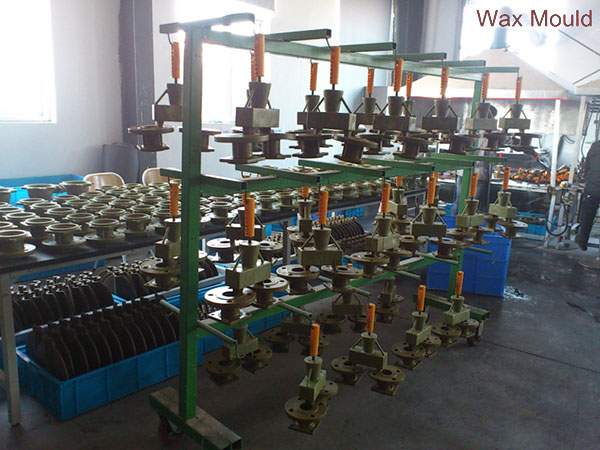

Investment Casting
